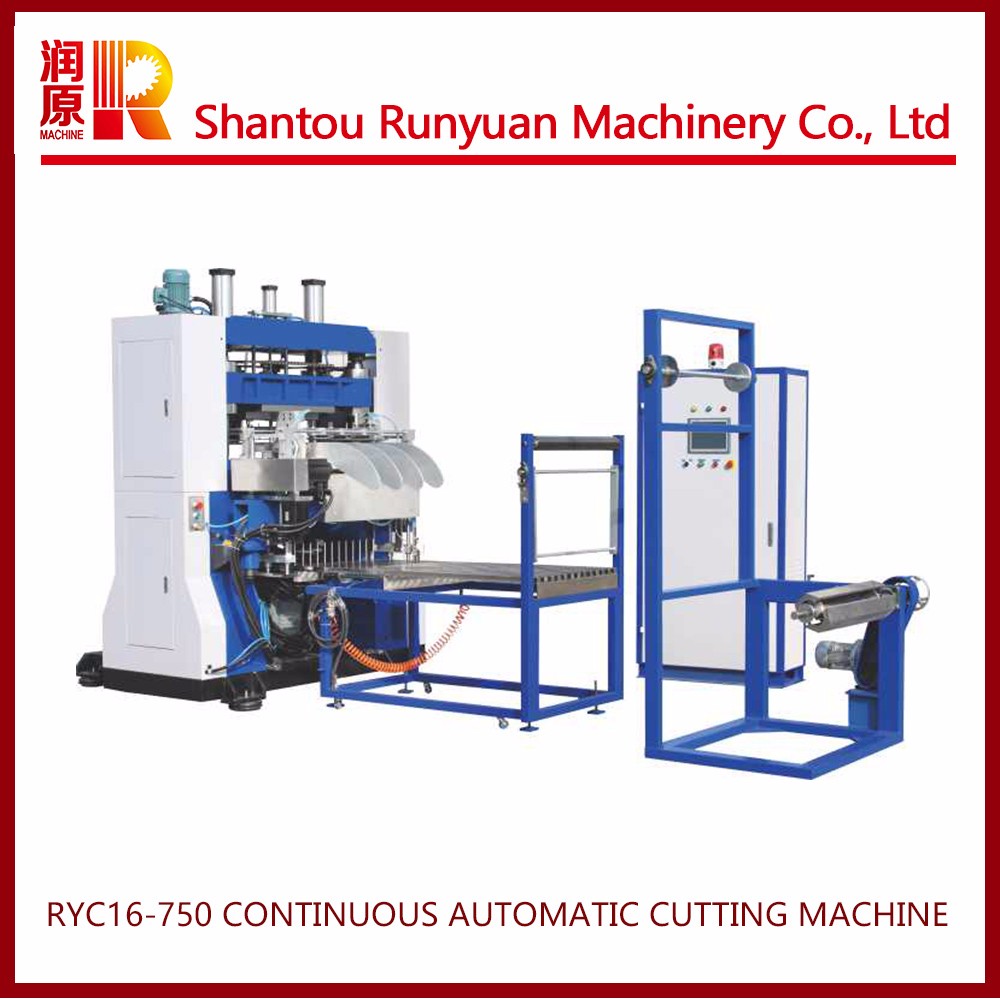

RYC16-750 Continuous Automatic Cutting Machine
RYC16-750連續式自動沖剪機
1、 Main Parameter 機組主要技術參數
Max Cutting Area *沖剪面積 | 680*320mm | 680*220mm |
Max Cutting Force *沖剪力 | 16T | 8T |
Max Cutting Speed *沖剪速度 | 65cycles/min 65模/分鐘 | 70cycles/min 70模/分鐘 |
Max Product Height 適應制品*高度 | 120mm | 120mm |
Power of Main Motor 主電機功率 | 11kw | 7.5kw |
Cutting Distance 沖切行程 | 150mm | 150mm |
Power supply 使 用 電 源 | 380V/50HZ (三相四線) | 380V/50HZ (三相四線) |
Pressure 使 用 氣 壓 | 0.2-0.6Mpa | 0.2-0.6Mpa |
Gas Consumption 耗氣量 | 200 L/min | 200 L/min |
Overall Dimension 機組外型尺寸 | 1600*2000*2000 | 1600*2000*2000 |
Total Weight 整機重量 | 4000 kg | 4000 kg |
2、Introduction 機組簡介
RYC16-750 Continuous Automatic Cutting Machine is a asistant machinery ,which can connect with thermoforming machine. It is suitable for PP, PS, PET, which is especially suitable for box or lid with lower depth, and other heterosexual products. The unit has high efficiency, high stabilityand can realize punching and shearing, stacking and counting into one machine, is a new kind of high automation equipment.
RY16-750連續式自動沖剪機是與我廠熱成型機組對接的一種新型成型周邊設備；可適用PP、PS、PET、PLA制品的沖剪。特別適用于深度較淺的方盒、蓋子等異性制品。同時，機組具有高效率、高穩定性；該機可實現沖剪、堆疊、計數于一體，是一種新型高自動化設備。
3、 Machine characteristic機組特點
A. The cutting mechanism using slider-crank mechanism, mechanical moving at a high speed. The guide post include guide pins, which materials is quenched and tempered 45 # steel, hard chrome plating, good rigidity and accurate performance, wear resistance, helpful for increase the service life of the die cutter, die opening and closing machine adopts high precision ball guide pin, clamping precision is high.
沖切機構采用曲柄滑塊機構，機械式高速連動。模臺導向采用4導柱結構，導柱材料45#鋼調質，外鍍硬鉻，剛性好，導正性能精確，耐磨損，有助于模具剪口使用壽命，模臺開合采用高精度滾珠導柱套副,合模精度高。
B. The streching structure adopt servo motor control up and down, high control precision, and quick response.
拉伸結構采用伺服電機控制升降，控制精度高，啟停響應迅速。
C. Feeding adopt servo motor driving, high control precision, and quick response. Feeding setting set two stages to send piece length, to solve different production layout and product center to send piece of distance.
送片采用伺服電機傳動，控制精度高，啟停響應迅速。送片設置兩段式送片長度，解決成型版面與制品中心不同送片距離。
D. Feeding and extruding use servo motor control up and down; Reduce the sheet transfer resistance, auxiliary mould cutting position. Maximum travel stoke is 120 mm.
入片端、出片端采用伺服電機控制升降；減少片材輸送阻力，輔助模具沖切定位。*升降行程可達120mm。
E. The unit closed height is adjustable and can be adapted to different closed the height of the mould, the largest stroke is 30 mm.
機組封閉高度可調,可適應不同封閉高度的模具,*調節行程30mm.
F. Low center gravity design, low cup blowing height, stable operation, accord with human stand and the best height operation.
低重心設計，出杯高度低，運行平穩，符合人體站立操作及觀察*高度。
G. The entire device control using sanhe/SMC pneumatic components, reliable operation, long service life.
整個設備的氣路控制采用三和/SMC元件，動作可靠，使壽命長。
H. The unit is equipped with automatic oil supply system, fuel supply time from PLC in each set.
整個設備的氣路控制采用三和/SMC元件，動作可靠，使壽命長。機組配備自動供油系統，可從PLC設定各轉動點的供油時間
